ContactDESCRIPTIONDurability
The vibrating part has the construction that an actuating rod supported by two special synthetic rubber diaphragms vibrates laterally and this allows long-term continuous operation.
No lubrication
There is no sliding portion between moving parts so that no lubrication is required and the exhausted air is always clean.
High efficiency
Owing to the electromagnetic vibration construction which eliminates sliding parts, “HIBLOW” pump realizes lower power consumption and high performance.
Compact and powerful
“HIBLOW” air pump employs perfectly-balanced vibration mechanism using two electromagnets, one in the front and the other in the rear. This mechanism allows compact size and powerful device.
Low noise
Soundproofing construction from the viewpoint of air circuit and vibration is the key factor in the design of pump and “HIBLOW” pump has exceptionally quiet soud level.
Smooth air flow
Because the exhaust air volume is very constant and there is less pulsation, “HIBLOW” pump is suitable for the application which requires consistent air pressure and supply.
Simple maintenance
“HIBLOW” pump shall be used for longer period with maintenance free, however, replacement of the parts can easily be done by modular type of parts in case that diaphragm might be broken.
TECHNO TAKATSUKI CO.,LTD.

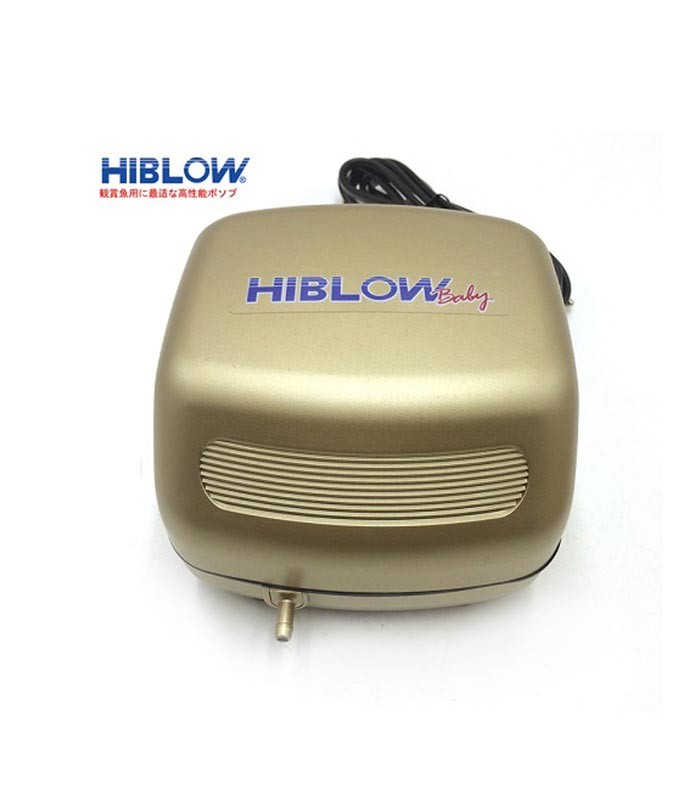

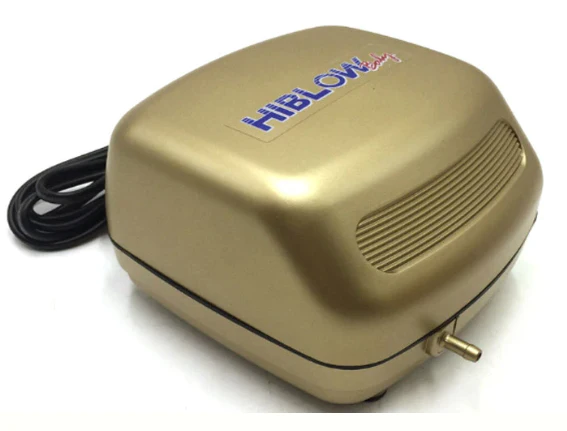

Brand : HIBLOW

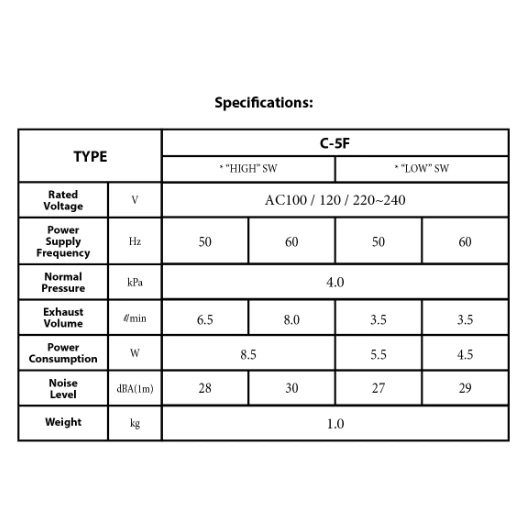

Rated Voltage: AC230
Power Supply Frequency: 50hz
Normal Pressure: 4.0KPa
Exhaust Volume: (high-6.5L/min), (low-3.5L/min)
Power Consumtion: (high 8.5W), (low 5.5W)
Noise Level: (high 28.0dBA 1m), (low 27.0dBA 1m)
Max Pressure: (high 18.0kPa), (low 10.0kPa)
Weight: 1.0kg
